2018 Shimano Stella FJ

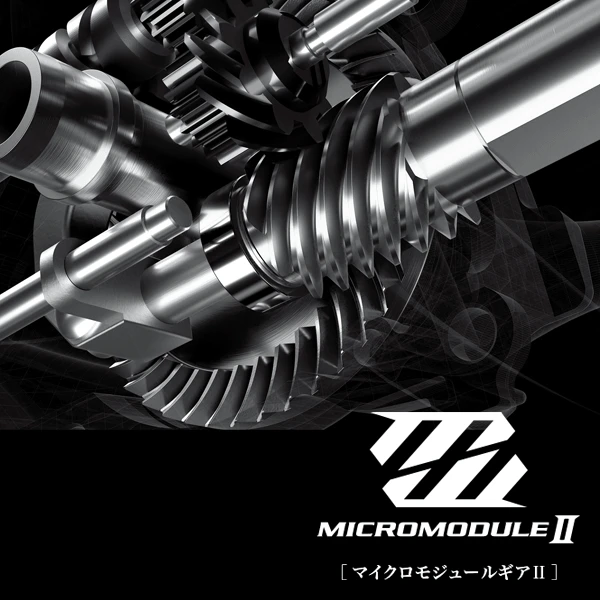

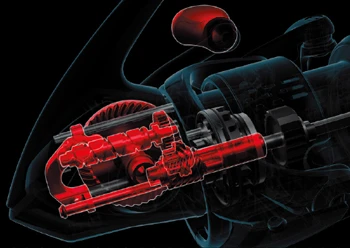

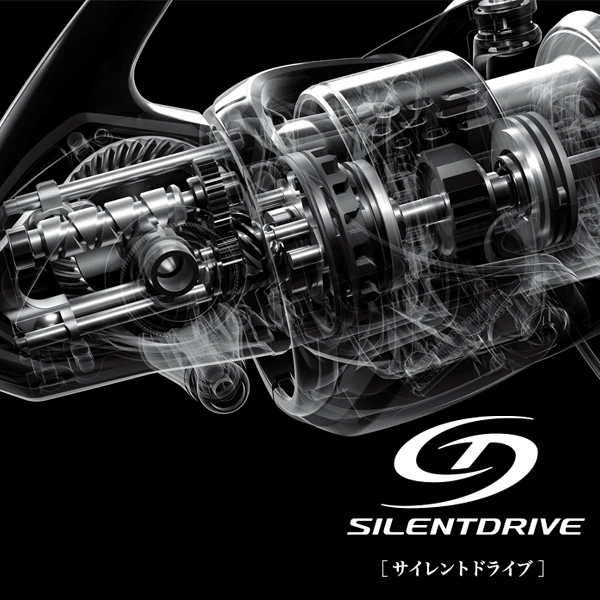

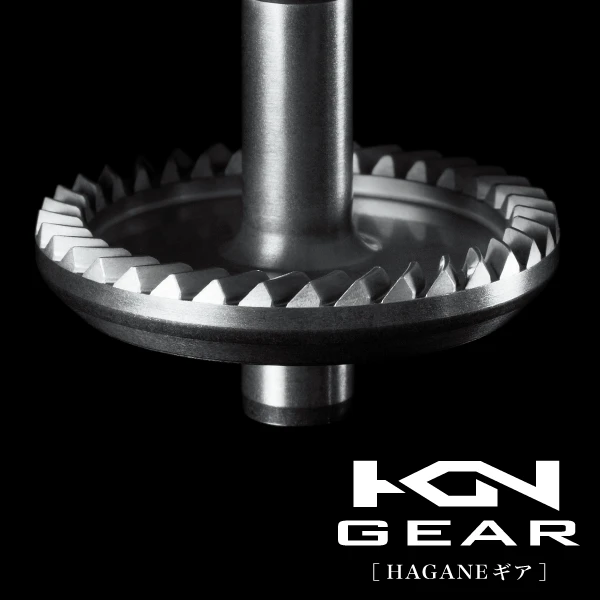

Shimano has redesigned one of the teeth of the drive gear and mounted the micro module gear II which is ideal tooth shape. Furthermore, in order to thoroughly eliminate the slight rattle feeling and stiff feeling at the time of winding, the 2018 Stella has newly adopted a designed silent drive system that suppresses rattling of the mechanism section. Body and line rollers adopt X Protect which increases the reels water resistenace, and continue to protect smooth & silent which is the true stem of Stella.



Part number	Gear	Practical drag strength	Self weight (g)	Spool size	Nylon thread wound amount (lb – m)	Maximum	Handle length	Bearing number
	ratio	Maximum drag force		(diameter mm / stroke mm)	Fluor Wound volume (lb – m)	winding length	(mm)	BB / roller
		(kg)			PE thread winding amount (No. – m)	(cm / 1 turn of
1000 SSSPG	4.6	2	165	40 / 13.5	2-100, 3 – 60	58	35	12/1
		3			2-80, 3 – 55
					0.3 – 120, 0.4 – 90
1000 SSSDH	5.1	2	175	40 / 13.5	2-100, 3 – 60	64	38	12/1
		3			2-80, 3 – 55
					0.3 – 120, 0.4 – 90
C2000S	5.1	2	170	43 / 13.5	3-125, 4-100, 5-75	69	40	12/1
		3			3 – 110, 4 – 85, 5 – 65
					0.6-150, 0.8-110, 1 – 80
C2000 SHG	6.1	2	170	43 / 13.5	3-125, 4-100, 5-75	82	45	12/1
		3			3 – 110, 4 – 85, 5 – 65
					0.6-150, 0.8-110, 1 – 80
C2500 SHG	6	2	180	43 / 13.5	5-110, 6-95, 8-70	81	45	12/1
		3			4-130, 5-100, 6-80
					0.6-200, 0.8-150, 1 – 120
2500S	5.3	2.5	205	47/17	5-110, 6-95, 8-70	78	50	12/1
		4			4-130, 5-100, 6-80
					0.6-200, 0.8-150, 1 – 120

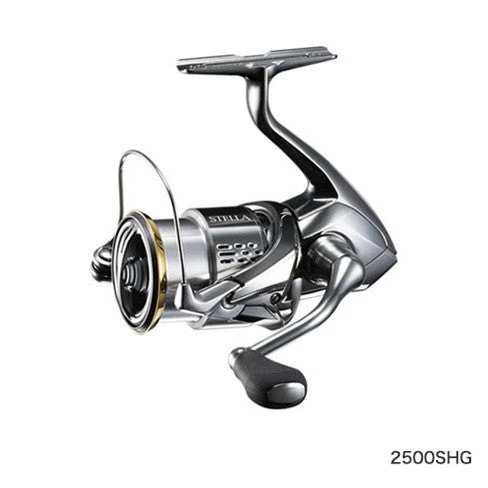

2500 SHG	6	2.5	205	47/17	5-110, 6-95, 8-70	89	55	12/1
		4			4-130, 5-100, 6-80
					0.6-200, 0.8-150, 1 – 120
C 3000	5.3	6	210	47/17	Nylon (No.-m) 2. 5 – 180, 3 – 150, 4 – 100	78	50	12/1
		9			Fluoro (No.-m) 2. 5 – 160, 3 – 130, 4 – 100
					1 – 400, 1.5 – 270, 2 – 200
C3000SDHHG	6	6	215	47/17	5-110, 6-95, 8-70	89	45	12/1
		9			4-130, 5-100, 6-80
					0.6-200, 0.8-150, 1 – 120

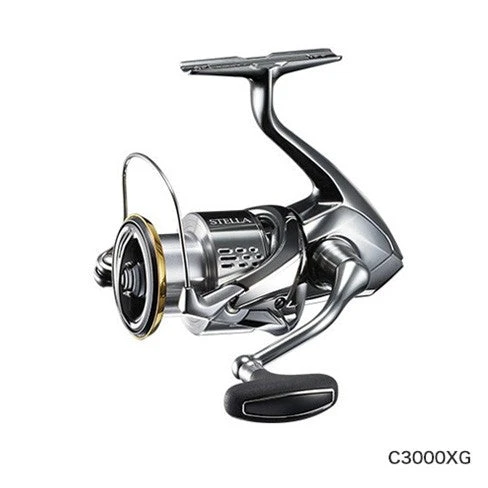

C3000 XG	6.4	6	210	47/17	Nylon (No.-m) 2. 5 – 180, 3 – 150, 4 – 100	94	55	12/1
		9			Fluoro (No.-m) 2. 5 – 160, 3 – 130, 4 – 100
					1 – 400, 1.5 – 270, 2 – 200
C 3000 MHG	6	6	210	47/17	8-130, 10-110, 12-85	89	55	12/1
		9			8-110, 10-90, 12-80
					1-190, 1.2-150, 1.5-120
3000 MHG	5.8	6	225	47/17	8-130, 10-110, 12-85	86	55	12/1
		9			8-110, 10-90, 12-80
					1-190, 1.2-150, 1.5-120
4000	5.3	7	255	52/19	Nylon (No.-m) 3.5-170, 4-150, 5-125	87	55	12/1
		11			Fluoro (No.-m) 3-190, 4-145, 5-115
					1-490, 1.5-320, 2-240
4000 XG	6.2	7	255	52/19	Nylon (No.-m) 3.5-170, 4-150, 5-125	101	57	12/1
		11			Fluoro (No.-m) 3-190, 4-145, 5-115
					1-490, 1.5-320, 2-240
4000 MHG	5.8	7	255	52/19	Nylon (No.-m) 2.5-160, 3 – 120, 4 – 90	95	55	12/1
		11			Fluoro (No. – m) 3 – 110, 4 – 90, 5 – 65
					1.2-250, 1.5-200, 2-150
C5000 XG	6.2	7	260	52/19	Nylon (No.-m) 4-190, 5-150, 6- 125	101	57	12/1
		11			Fluoro (No.-m) 4-170, 5-135, 6-115
					1.5-400, 2-300, 3-200

* XG = extra high gear specification, HG = high gear specification, PG = power gear specification, SSS = special shallow spool specification
S = shallow spool specification, M = medium deep spool specification, DH = double handle specification, C = compact body .
* There is no switching mechanism of the stopper.
