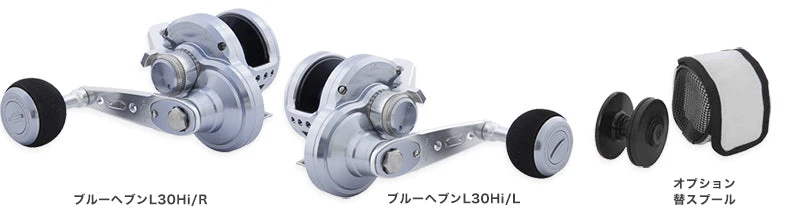

Studio Ocean Mark Blue Heaven L30HI

This Reel is made from the finest materials to ensure a gracious balance of size, weight and power. The multitude of features this reel exhibits guarantees the highest of quality when it comes to Slow Pitch Jigging as each feature has been dealt with special consideration to work in impeccable unison with another to maximise your fishing experience.

DESIGN

SUPER SPOOL FREE

By attaching a clip to the OK75 in the designed location, you may safely attach the knotter to the foot of your line guide, the revit on your rods handle or an anchoring hole located on your boat. This will assist you in tying the FG knot!

AUTO RETURN LD

Drag lever interlocked with handle rotation and automatically returns to strike position.
A clip type reel similar to the Ocea Jigger and Saltiga allows for superior practicality. Targeting fish during the drop is optimised with the use of the auto return lever drag with its advantageous functionality. Also, because it is a lever drag, you can also switch the drag from FREE to MIN which adjusts the jig’s fall speed and increases the chances of getting bites.

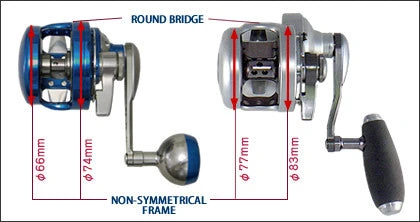

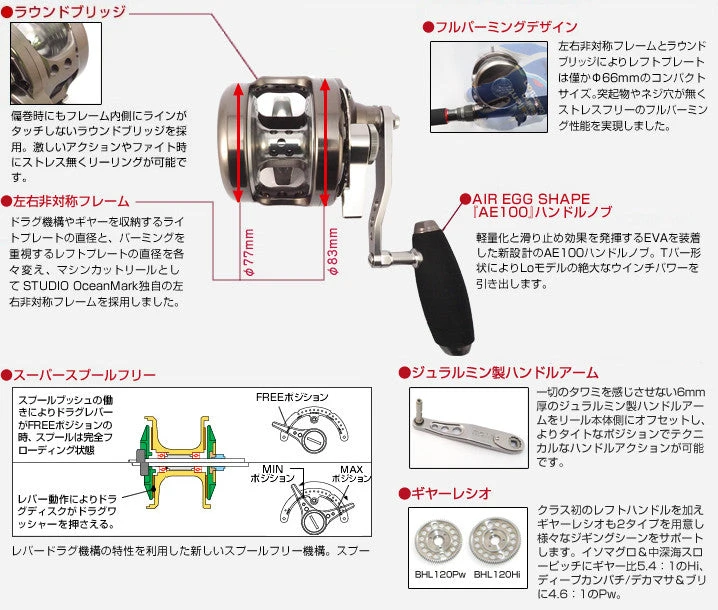

NON-SYMMETRICAL FRAME

When designing our machined cut reel we thought of not only looks but also about ergonomics.
Palming of the reel is one of the most important designs in our mind. A non-symmetrical frame allows for a more natural feel while reeling and less stress at the grind.

DRAG LEVER

Lever drag design adopted also in S2T. The drag lever can be operated with the hand of the paring side while gripping the handle.

TOUGHNESS

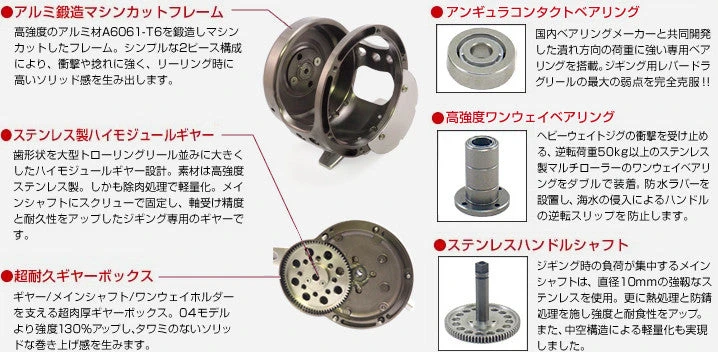

ALUMINUM MACHINE CUT FRAME

Machine cutting allows for increased toughness, durability and solidity that reinforces the strength of the reel to withstand harsher conditions.

LARGE CALIBER MOUNTAIN MODULE GEAR

High strength brass material for strength. The gear diameter is 50 mm and the thickness is 4.8 mm and it is larger than 48 mm of the first 50.
While being a Korean manufacturer, we are also thoroughly teaching technical guidance to take over the quality of the Nagano factory.

SUPER DURABLE GEAR BOX

The gear box is made to be tough and strong without adding too much weight. With power in mind, the gear box is guaranteed to be able to haul in big catches.

STAINLESS STEEL, EXTRA THICK SHAFT

The handle shaft / knob shaft / spool shaft is the same material as BHL 50 of the upper model / the same diameter design, it is the bearing power that exceeds that class.

HIGH STRENGTH ONE WAY BEARING

The one way bearing adds new technology to this real and allows for smoother performance.

ULTRA HIGH PERFORMANCE GREASE

Premium quality grease will improve the efficiency and feel of your fishing, giving the reel a smoother performance.

DRAG



SEMI-WATER PROOF DRAG

Although the spool-free performance of the lever drag reel with the waterproof mechanism mounted on the drag part is slightly deteriorated, the BHL 30 devises the shape of the waterproof rubber and the drag cover arranged on the drag disc, which maintains high performance free spools.A new development in the epoch-making mechanism provides simple waterproofing when free and waterproof when hoisting.

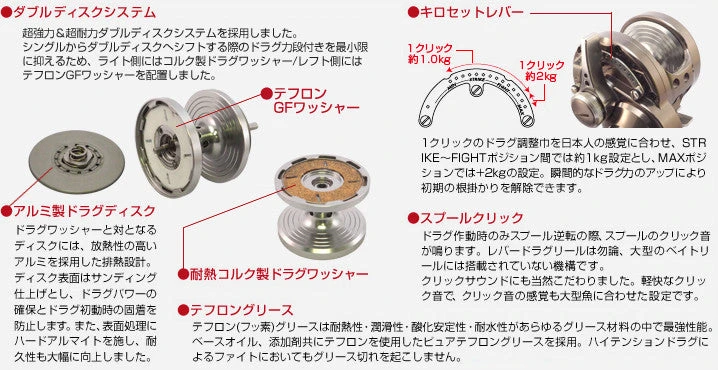

CARBON MADE DRAG WASHERS

We adopted carbon level drag washer of the highest level for both initial smoothness, heat resistance and durability. Alcon Grease is outstandingly compatible with the low tension setting, and it shows super smooth characteristics when targeting large red sea breams, as well as power that does not get taken over by large bodies.

KILO SET LEVER

On our L50 reel series you get 0.5kg per drag click. You will get an additional 2kg in the max drag position.

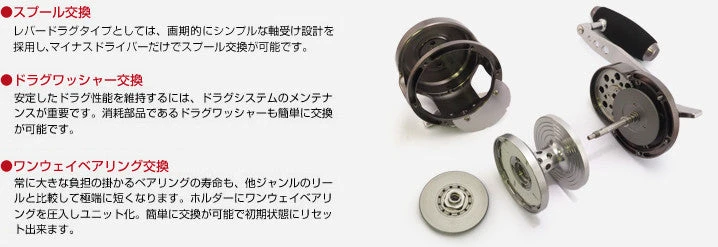

MAINTENANCE



SPOOL CHANGE

You can change the spool with the use of one minus screwdriver.

DRAG WASHER REPLACEMENT

Replacement of drag washers is simple.

ONE WAY BEARING REPLACEMENT

Compared to other types of reels, jigging reels bearings have a shorter life expectancy. So we made it easier to replace those bearings.
